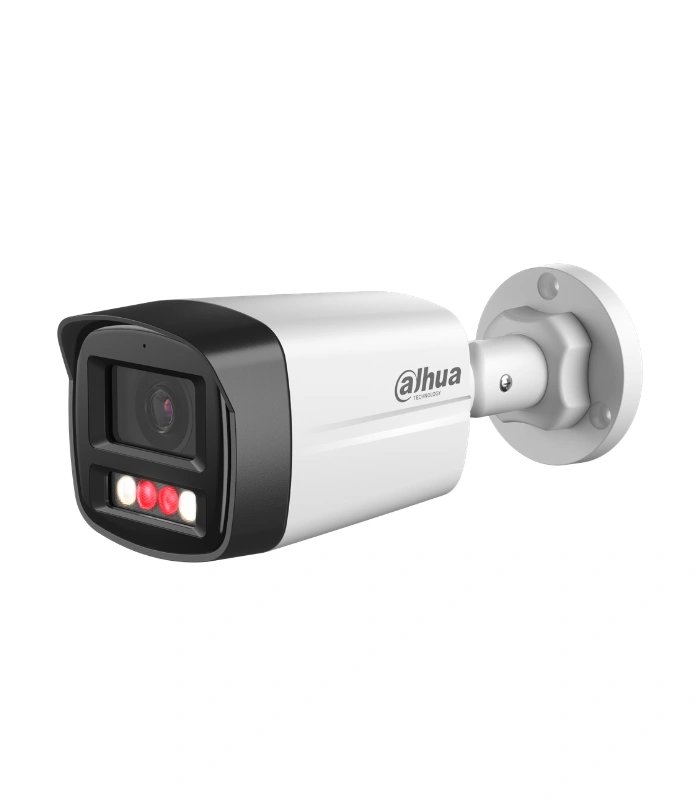

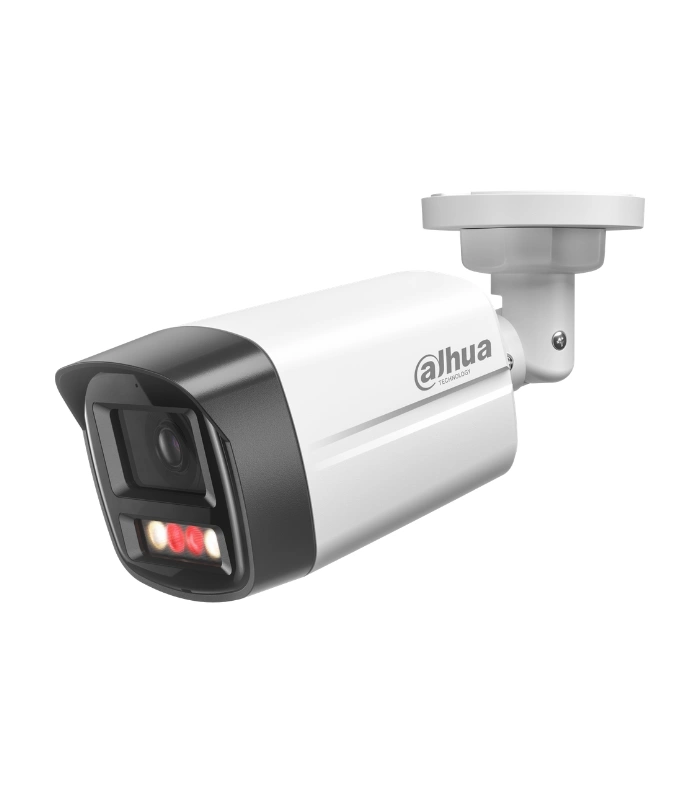

DH-IPC-HFW1439TL1-A-IL
4MP Entry Smart Dual Light Fixed-focal Bullet Network Camera
Brands:
- 4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
- WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
- Built in Mic.
- 12 VDC/PoE power supply,
- IP67 protection.
- Supports human and vehicle detection.
฿2,090.00
Don't Miss Top Accessories
System |
|
| Model | DH-IPC-HFW1439TL1-A-IL |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
SMD |
|
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 10 channels |
Audio and Video |
|
| Analog Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input | Up to 10 channels of IPC access 2 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled. |
| Encoding Capacity | Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–4096 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
Compression Standard |
|
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
Network |
|
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
Recording Playback |
|
| Record Mode | General; alarm; motion detection |
| Recording Playback | 1/4/9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
Alarm |
|
| General Alarm | Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
Ports |
|
| Audio Input | 1-channel RCA 8-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Coaxial two-way talk: 8-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Disk Interface | 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature. |
| USB | 2 (2 rear USB 2.0 ports) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
General |
|
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <7 W (without HDD) |
| Net Weight | 0.57 kg (1.26 lb) |
| Gross Weight | 0.97 kg (2.14 lb) |
| Product Dimensions | 197.0 mm × 204.3 mm × 41.5 mm (7.76″ × 8.04″ × 1.63″) (W × D × H) |
| Packaging Dimensions | 332.0 mm × 64.0 mm × 240.0 mm (13.07″ × 2.52″ × 9.45″) (W × D × H) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
Recommended Accessories
อุปกรณ์ที่แนะนำสำหรับการใช้งานร่วมกับสินค้านี้ เพื่อประสิทธิภาพสูงสุดในการติดตั้งระบบกล้องวงจรปิด
เครื่องบันทึก NVR
รองรับการบันทึกภาพจากกล้อง IP Camera มีให้เลือกหลายขนาดช่องสัญญาณ
Hard Disk สำหรับ CCTV
ออกแบบสำหรับงานบันทึกภาพตลอด 24 ชั่วโมง มีความเสถียรและทนทาน
PoE Switch
จ่ายไฟและรับส่งข้อมูลผ่านสาย LAN เส้นเดียว ติดตั้งง่าย ประหยัดเวลา
สาย LAN CAT6
รองรับความเร็วสูง เสถียรภาพในการส่งข้อมูล เหมาะสำหรับระบบกล้อง IP
อุปกรณ์ติดตั้ง
ขายึดกล้อง, Junction Box และอุปกรณ์ติดตั้งครบชุด สำหรับงานติดตั้งมืออาชีพ
อุปกรณ์ Network
เราเตอร์, Access Point และอุปกรณ์เครือข่ายอื่นๆ สำหรับระบบของคุณ
Product Overview
General
| Weight | 0.45 kg |
|---|---|
| Dimensions | 20 × 9 × 8 cm |
| Lens | 2.8 MM, 3.6 MM |
| AI Feature | Human Detection, Motion Detection, Vehicle Detection |
| Area | Outdoor |
| Audio | Built-in Mic |
| Compression | Smart H.264+, Smart H.265+ |
| Lighting Technology | Dual Light |
| Night Vision | 30m |
| Power Supply | 12VDC & PoE |
| Resolution | 4 MP |
| Series | Lite Series |
| WDR | DWDR |
