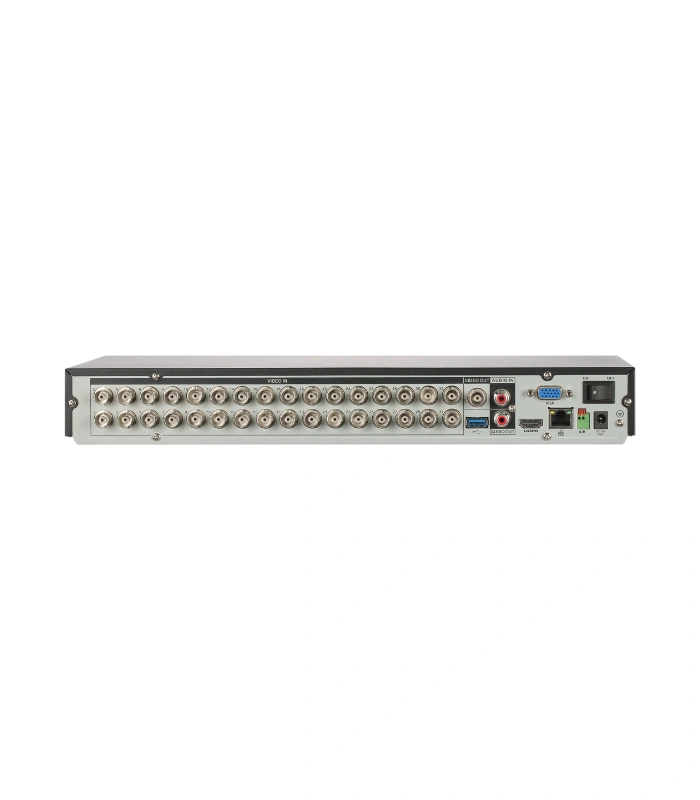

DH-XVR4232AN-I
32CH Penta-brid 1080N/720P 1U 2HDDs WizSense Digital Video Recorder
Brands:
- 32-channel SMD Plus for analog channels or 36-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
- 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
- Supports HDCVI, AHD, TVI, CVBS and IP video input.
- Supports up to 20-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
- Smart H.265+ and H.265 dual-stream video compression.
฿8,690.00
Don't Miss Top Accessories
System |
|
| Model | DH-XVR4232AN-I |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
SMD Plus |
|
| SMD Plus by Recorder | 32 channels: | Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 36 channels |
Irregular Black Block Masking |
|
| Irregular Black Block Masking by Recorder | 1 channel |
Audio and Video |
|
| Analog Camera Input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 1080p@25/30 fps; 720p@25/30 fps. | 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. | 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input | Up to 20 channels of IPC access | 4 IP channels by default + 16 channels (analog channels are converted to IP channels) | incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps | *After IP channels are added beyond the existing channels, the AI Function SMD will be disabled. |
| Encoding Capacity | Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) | Sub stream: CIF@(1 fps–7 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–4096 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA，1 TV | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
Compression Standard |
|
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
Network |
|
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
Recording Playback |
|
| Record Mode | General; alarm; motion detection |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
Storage |
|
| Disk Group | Yes |
Alarm |
|
| General Alarm | Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
Ports |
|
| CVBS Output | 1 channel |
| Audio Input | 1-channel RCA | 32-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| Disk Interface | 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
General |
|
| Power Supply | 12 VDC, 4 A |
| Power Consumption | <12 W(without HDD) |
| Net Weight | 1.92 kg (4.23 lb) |
| Gross Weight | 3.09 kg (6.81 lb) |
| Product Dimensions | 375.0 mm × 289.6 mm × 53.0 mm (14.76″ × 11.40″ × 2.09″ ) (W × D × H) |
| Packaging Dimensions | 433.0 mm × 141.0 mm × 366.0 mm (17.05″ × 5.55″ × 14.41″) (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 | CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | FCC: Part 15 Subpart B |
Recommended Accessories
อุปกรณ์ที่แนะนำสำหรับการใช้งานร่วมกับสินค้านี้ เพื่อประสิทธิภาพสูงสุดในการติดตั้งระบบกล้องวงจรปิด

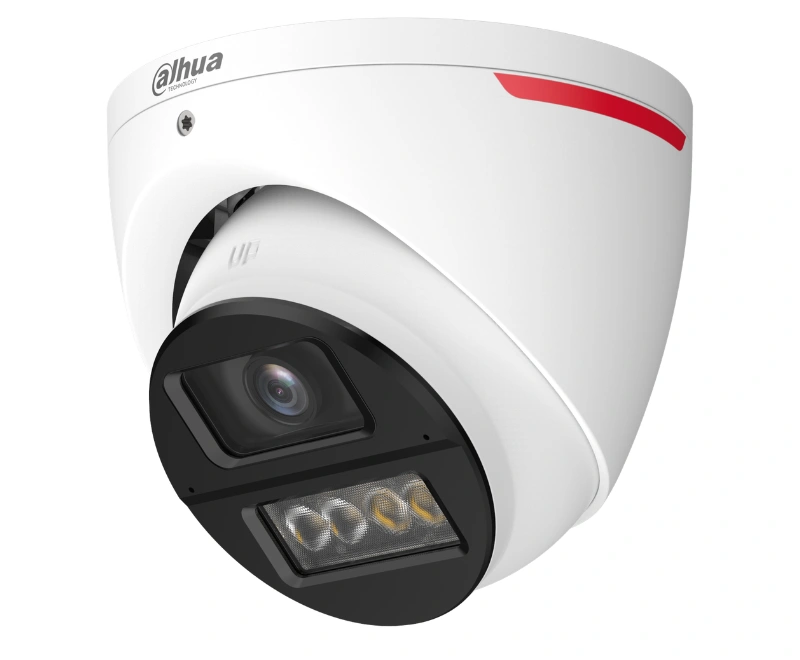

Analog Cameras
ขยายระบบรักษาความปลอดภัยด้วยกล้องวงจรปิด Analog ที่รองรับการทำงานร่วมกับเครื่องบันทึก DVR ช่วยเพิ่มพื้นที่เฝ้าระวังและรองรับการติดตั้งเพิ่มเติมได้ตามความต้องการ
Hard Disk สำหรับ CCTV
ออกแบบสำหรับงานบันทึกภาพตลอด 24 ชั่วโมง มีความเสถียรและทนทาน
อุปกรณ์ติดตั้ง
อุปกรณ์เสริมสำหรับระบบกล้องวงจรปิด เช่น อุปกรณ์ติดตั้ง กล่องกันน้ำ ขายึด อะแดปเตอร์ สายสัญญาณ และอุปกรณ์ที่เกี่ยวข้อง ช่วยให้การติดตั้งเป็นระเบียบ ปลอดภัย และพร้อมใช้งานได้อย่างมีประสิทธิภาพ
Product Overview
General
| Weight | 3.09 kg |
|---|---|
| Dimensions | 43.3 × 14.1 × 36.6 cm |
| Channel | 32 CH |
| Compression | H.264, H.265, Smart H.264+, Smart H.265+ |
| HDD Bay | 2 HDD |
| AI Feature | Human Detection, Motion Detection, Vehicle Detection |
| Series | WizSense |
| Resolution | 1080p |
| Video Input | AHD, CVBS, CVI, HDTVI, IP |
