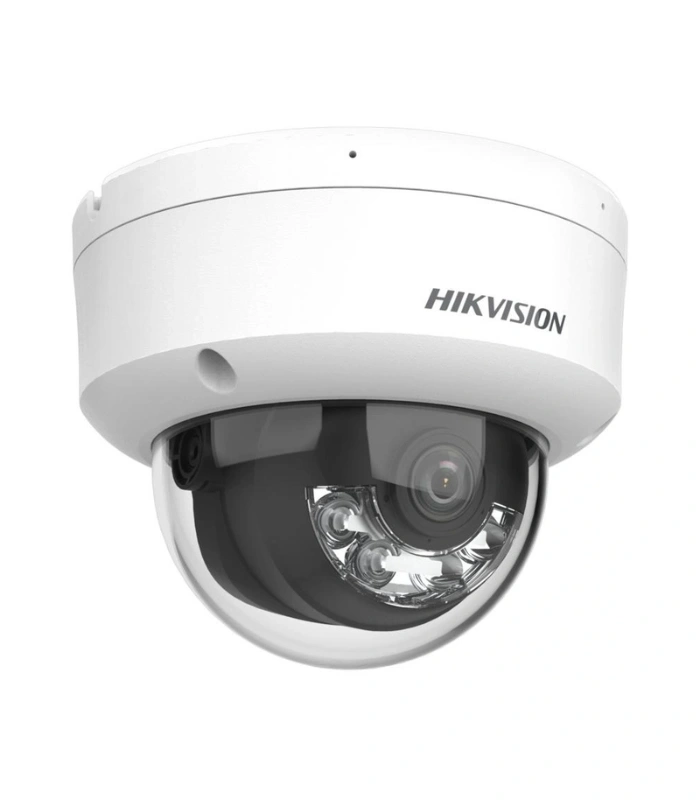

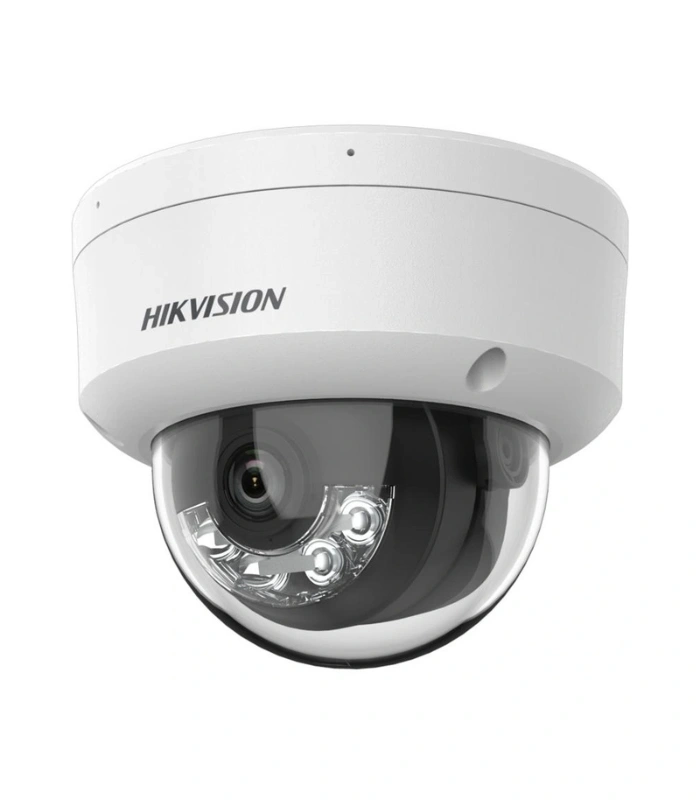

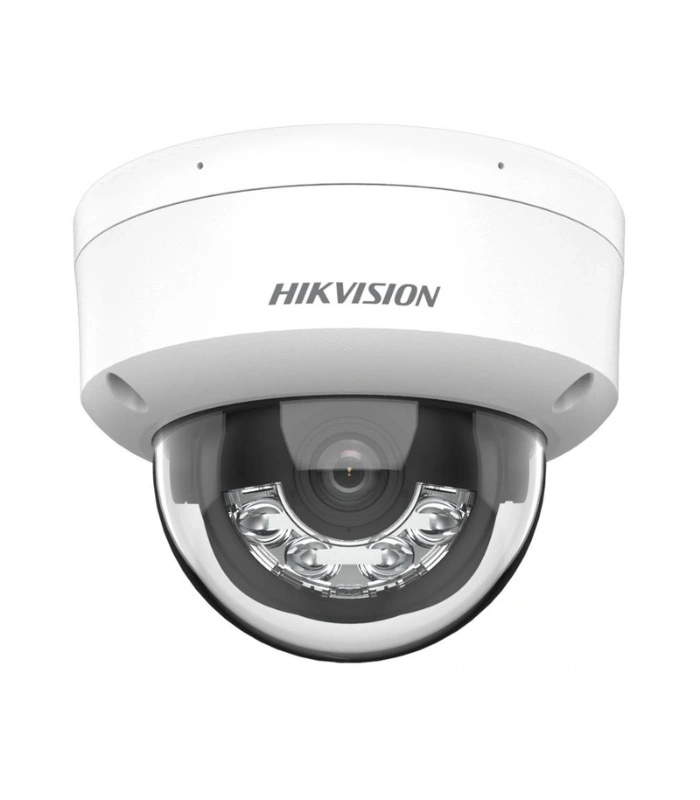

DS-2CD1123G2-LIU
2 MP Smart Hybrid Light Fixed Dome Network Camera
Brands:
- High quality imaging with 2 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67) and vandal resistant (IK08)
฿1,690.00
Don't Miss Top Accessories
Camera |
|
| Model | DS-2CD1123G2-LIU |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Lens |
|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm,horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121° 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
DORI |
|
| DORI | 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m |
Illuminator |
|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | IR: up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video |
|
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio |
|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network |
|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200 |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
Image |
|
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface |
|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | -F: : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Microphone | Yes |
| Reset Key | -F: Yes |
Event |
|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
General |
|
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal & Plastic |
| Dimension | Ø 110 mm × 89.2 mm (Ø 4.3″ × 3.5″) |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight | Approx. 340 g (0.7 lb.) |
| With Package Weight | Approx. 560 g (1.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
Approval |
|
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013, IK08: IEC 62262:2002 |
Recommended Accessories
อุปกรณ์ที่แนะนำสำหรับการใช้งานร่วมกับสินค้านี้ เพื่อประสิทธิภาพสูงสุดในการติดตั้งระบบกล้องวงจรปิด
เครื่องบันทึก NVR
รองรับการบันทึกภาพจากกล้อง IP Camera มีให้เลือกหลายขนาดช่องสัญญาณ
Hard Disk สำหรับ CCTV
ออกแบบสำหรับงานบันทึกภาพตลอด 24 ชั่วโมง มีความเสถียรและทนทาน

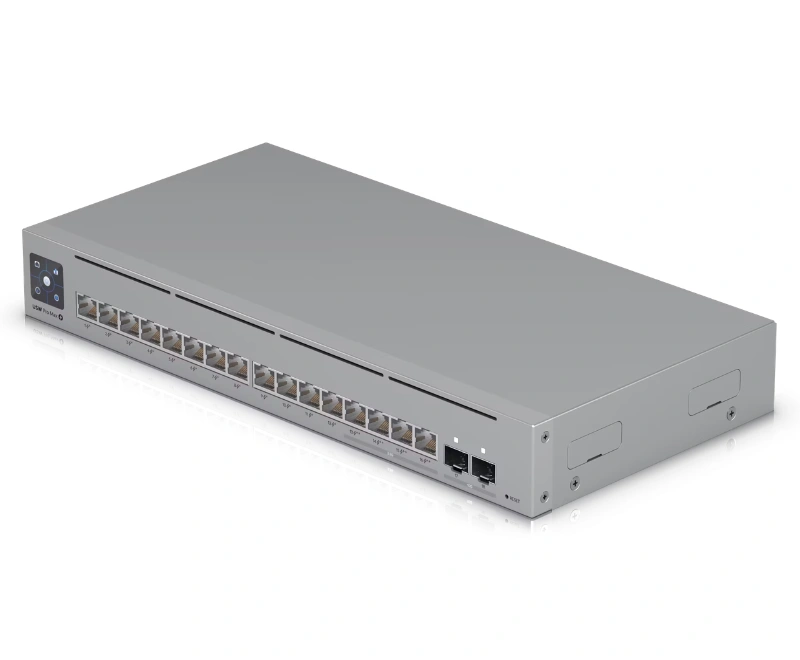

PoE Switch
จ่ายไฟและรับส่งข้อมูลผ่านสาย LAN เส้นเดียว ติดตั้งง่าย ประหยัดเวลา

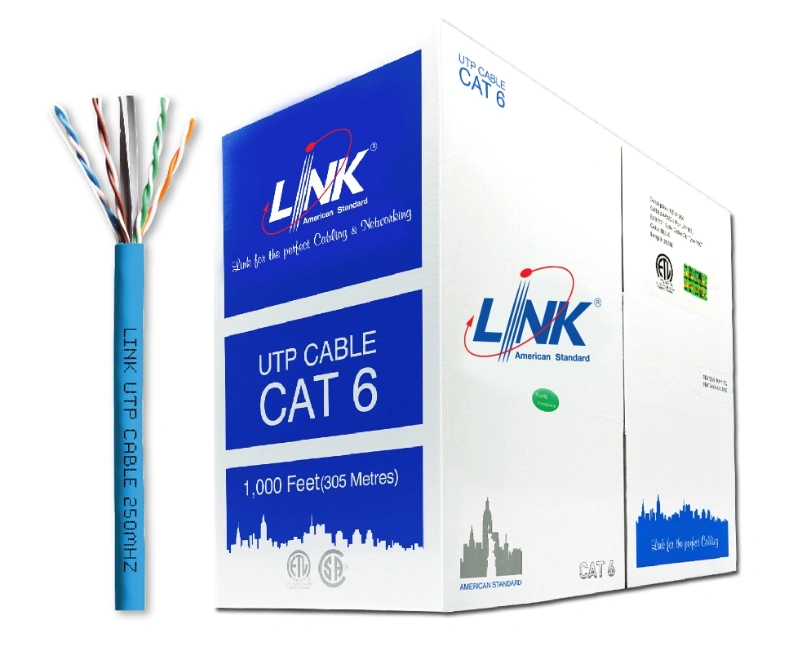

สาย LAN CAT6
รองรับความเร็วสูง เสถียรภาพในการส่งข้อมูล เหมาะสำหรับระบบกล้อง IP

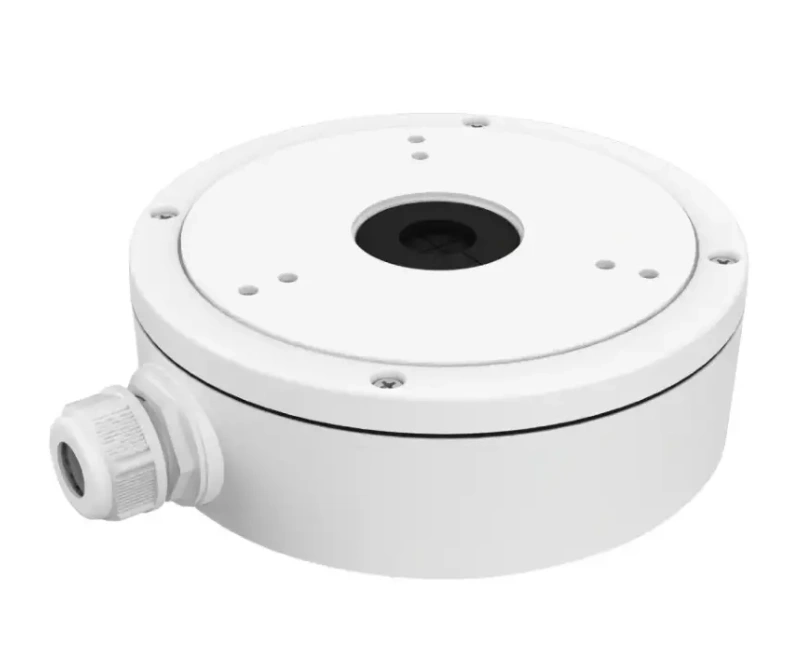

อุปกรณ์ติดตั้ง
ขายึดกล้อง, Junction Box และอุปกรณ์ติดตั้งครบชุด สำหรับงานติดตั้งมืออาชีพ
อุปกรณ์ Network
เราเตอร์, Access Point และอุปกรณ์เครือข่ายอื่นๆ สำหรับระบบของคุณ
Product Overview
General
| Weight | 0.8 kg |
|---|---|
| Dimensions | 15 × 15 × 14.1 cm |
| Area | Indoor |
| Lens | 2.8 MM, 4 MM |
| Resolution | 2 MP |
| AI Feature | Human Detection, Vehicle Detection |
| Audio | Built-in Mic |
| Compression | H.265+ |
| Lighting Technology | Smart Hybrid Light |
| Protection Rating | IK08, IP67 |
| Storage Support | MicroSD 512GB |
| Series | Value Series |
