iDS-7204HQHI-M1/XT
4-ch 1080p 1U H.265 AcuSense DVR
Brands:
- 4 channels and 1 HDD 1U AcuSense DVR
- Support 1-ch Facial Recognition or 2-ch Advanced model Perimeter Protection based on Deep Learning algorithm
- Support 2-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/5MP Lite @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6-ch network cameras can be connected
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
฿2,439.00
Don't Miss Top Accessories
Facial Recognition |
|
| Model | iDS-7204HQHI-M1/XT |
| Face Picture Comparison | Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera) |
| Face Picture Library | Up to 16 face picture libraries |
Motion Detection 2.0 |
|
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
Perimeter Protection |
|
| Human/Vehicle Analysis | Up to 2-ch |
Video and Audio |
|
| IP Video Input | 2-ch (up to 6-ch), Up to 6 MP resolution |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,2K(2304×1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous Playback | 4-ch |
Recording |
|
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
Network |
|
| Remote Connection | 32 |
| Total Bandwidth | 72 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP |
| Network Interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
Auxiliary Interface |
|
| Serial Interface | RS-485 (half-duplex) |
| SATA | 1 SATA interface, up to 10 TB capacity for each disk |
| Alarm In/Out | N/A (optional to support);4/1 |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
General |
|
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 18 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) |
| Weight | ≤ 1.16 kg (2.6 lb) |
Recommended Accessories
อุปกรณ์ที่แนะนำสำหรับการใช้งานร่วมกับสินค้านี้ เพื่อประสิทธิภาพสูงสุดในการติดตั้งระบบกล้องวงจรปิด

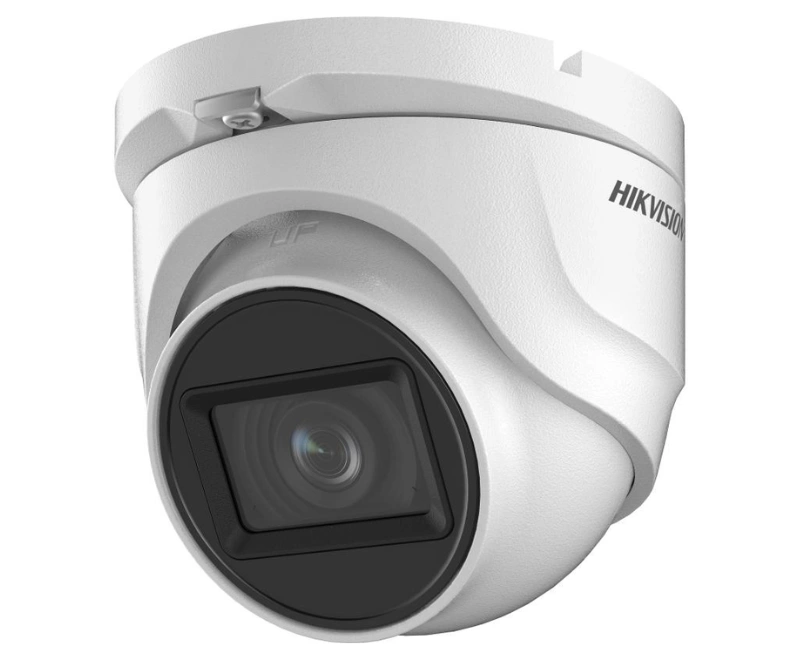

Analog Cameras
ขยายระบบรักษาความปลอดภัยด้วยกล้องวงจรปิด Analog ที่รองรับการทำงานร่วมกับเครื่องบันทึก DVR ช่วยเพิ่มพื้นที่เฝ้าระวังและรองรับการติดตั้งเพิ่มเติมได้ตามความต้องการ
Hard Disk สำหรับ CCTV
ออกแบบสำหรับงานบันทึกภาพตลอด 24 ชั่วโมง มีความเสถียรและทนทาน
อุปกรณ์ติดตั้ง
อุปกรณ์เสริมสำหรับระบบกล้องวงจรปิด เช่น อุปกรณ์ติดตั้ง กล่องกันน้ำ ขายึด อะแดปเตอร์ สายสัญญาณ และอุปกรณ์ที่เกี่ยวข้อง ช่วยให้การติดตั้งเป็นระเบียบ ปลอดภัย และพร้อมใช้งานได้อย่างมีประสิทธิภาพ
Product Overview
General
| Weight | 1.16 kg |
|---|---|
| Dimensions | 31.9 × 23.6 × 4.8 cm |
| Channel | 4 CH |
| AI Feature | AcuSearch, Facial Recognition, Motion Detection, Perimeter Protection |
| Audio | Two-Way Audio |
| Compression | H.265 |
| HDD Bay | 1 HDD |
| Resolution | 1080p |
| Video Input | AHD, CVBS, CVI, HDTVI, IP |
| Series | AcuSense, Pro Series |
