Camera

Model

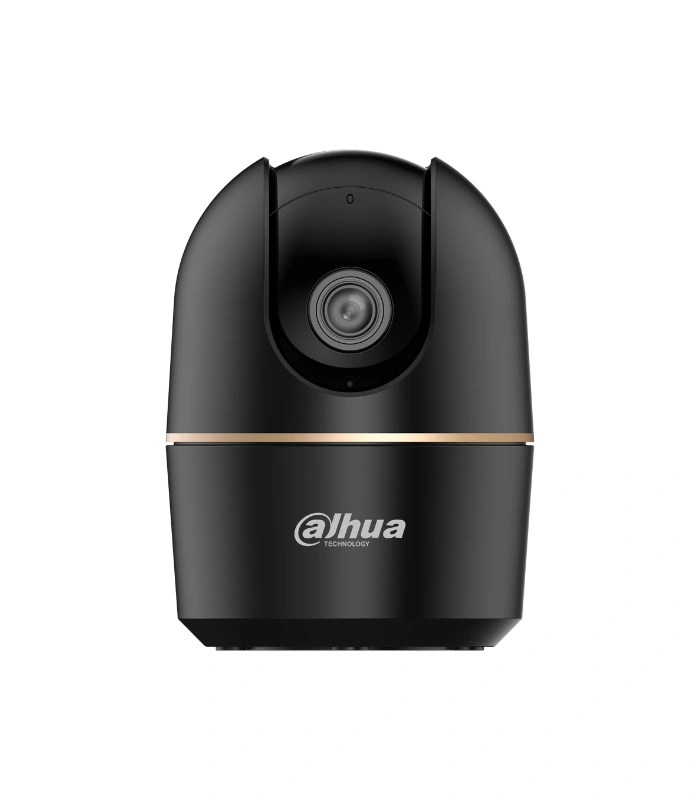

DH-H3AE-B

Image Sensor

1/3.2″ CMOS

Max. Resolution

2304 (H) × 1296 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 10 m (32.81 ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR LED)

Angle Adjustment

Pan: 0° to 355°;
Tilt: -5° to +80°

Lens

Max. Aperture

3.6 mm: F2.0

Field of View

3.6 mm: H: 79°; V: 43°; D: 94°

Video

Video Compression

H.265

Video Frame Rate

Main stream: 2304 × 1296@(1-25/30 fps) sub stream: 640 × 480@(1-25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

3 MP (2304 × 1296); 1080p (1920 × 1080); VGA (640 × 480

Video Bit Rate

H.265: 80 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Rotation

0°/180°

Audio

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; motion detection; audio detection

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G

Storage

Micro SD card (up to 256 GB)

Management Software

DMSS

Mobile Client

iOS;Android

Certification

Certifications

CE

Power

Power Supply

5 VDC, 1A

Power Consumption

Basic: 1.9 W Max. (video stream acquiring + IR + PTZ Rotation): 4.7 W

Environment

Operating Temperature

–10 °C to +45 °C (+14 °F to +113 °F)

Operating Humidity

≤ 95%

Structure

Casing Material

Plastic

Product Dimensions

φ77.8 mm × 108.1 mm (φ3.06″ × 4.26″)

Net Weight

200.3 g (0.44 lb)
