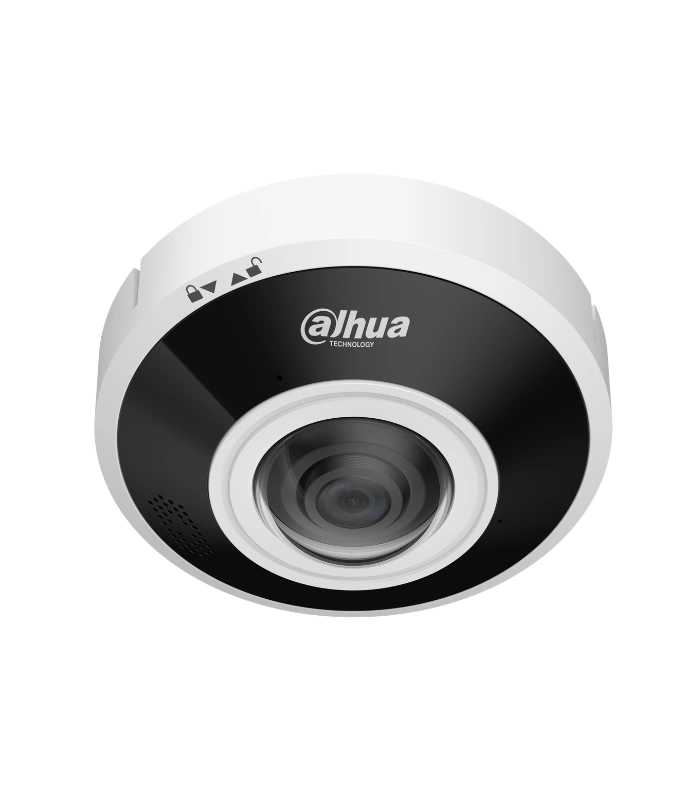

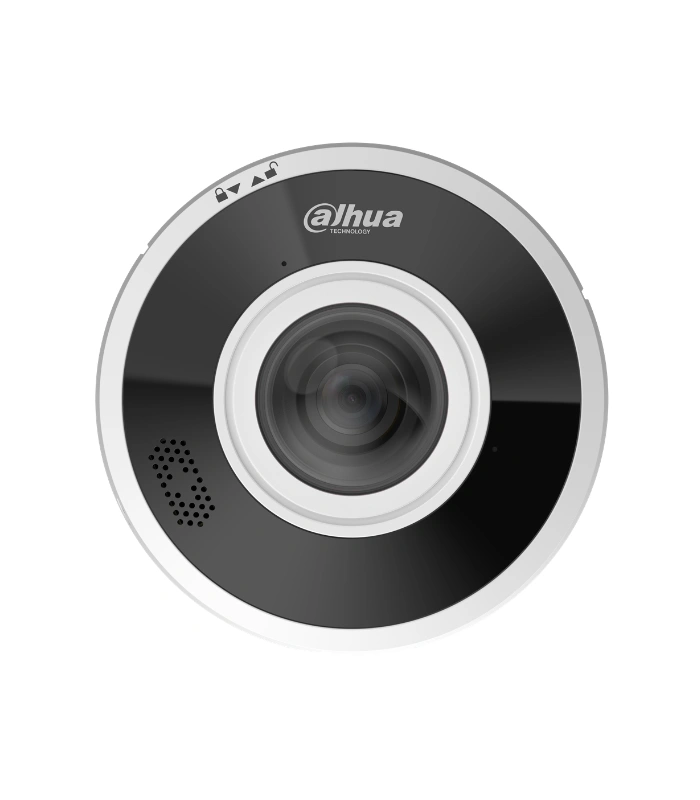

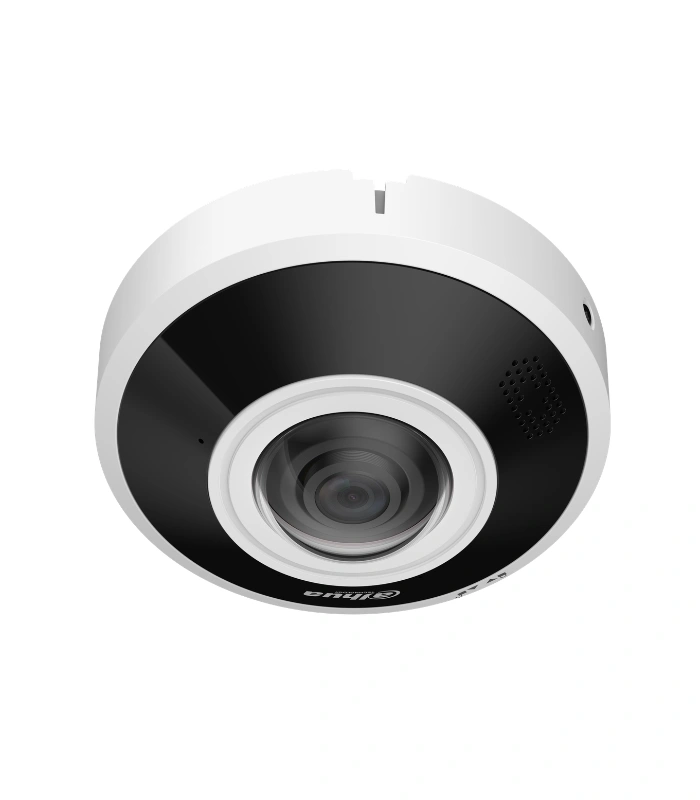

DH-IPC-EBW5641-AS

Name: DH-IPC-EBW5641-AS กล้องวงจรปิด Dahua 6MP Fisheye WizMind
SKU: DHU-EBW5641-AS
Price: 8550.00 THB
Availability: InStock

6MP IR Fisheye WizMind Network Camera

Brands:

SKU: DHU-EBW5641-AS

6-MP 1/2.5″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 6 MP (2560 × 2560)@25/30 fps.
360° fisheye monitoring covers all the corners without any blind zone.
Supports fisheye front-dewarp and back-dewarp.
Supports split screen for 2 and 4 windows.
Built-in IR LED, and the max. illumination distance is 15 m.
ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
Built-in speaker and dual Mic. Supports two-way talk.
12 VDC/ PoE(802.3af) power supply.
IP67 and IK10 protection.

฿8,550.00

Lens

1.68 MM

Don't Miss Top Accessories

Camera

Model

DH-IPC-EBW5641-AS

Image Sensor

1/2.5″ CMOS

Max. Resolution

2560 (H) × 2560 (V)

ROM

4 GB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.006 lux@F2.0 (Color, 30 IRE)
0.0006 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

1.68 mm: Up to 15 m (49.21 ft) (IR)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

3 (IR LED)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

1.68 mm

Max. Aperture

F2.0

Field of View

1.68 mm: H: 185°; V: 185°; D: 185°

Iris Control

Fixed

Close Focus Distance

1.68 mm: 0.3 m (0.98 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

1.68 mm

33.6 m
( 110.24 ft)

13.4 m
( 43.96 ft)

6.7 m
( 21.98 ft)

3.4 m

( 11.15 ft)

*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4)for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

EPTZ

Yes

IVS (Perimeter Protection)

Tripwire, intrusion (the two functions support accurate detection of human)

People Counting

Tripwire people counting, generating and exporting report (day/month/year); queue management and people counting in area, generating and exporting report (day/month);
4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

AI Coding

AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+

Video Frame Rate

Max Resolution in O Mode by Default
Main stream: 2560 × 2560@(1–25/30 fps)
sub stream: 1440 × 1440@(1–25/30 fps)
third stream: 1440 × 1440@(1–25/30 fps)
Resolution of 2 Split Windows in 2P Mode:
Sub stream:
Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);
third stream:
Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);
Resolution of 2 Split Windows in 2R Mode:
Sub stream:
Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps);
third stream:
Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps);
Resolution of 4 Split Windows in 4R Mode:
sub stream:
Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);
third stream:
Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);

Streaming Capability

3 streams

Resolution

6M (2560 × 2560); 4M (2048 × 2048); 1.6M (1280 × 1280); 2M (1440 × 1440); 1M (1024 × 1024); (720 × 720); SVCD (480 × 480); 2.5M (2560 × 960); 1.5M (2048 × 768); 1.3M (1920 × 720); (1280 × 480); (640 × 240); (1280 × 480); (640 × 240); VGA (640 × 480); QVGA (320 × 240); 3M (2048 × 1536); 2.7M (1920 × 1440); XVGA (1024 × 768); UVGA (1600 × 1200)

Bit Rate Control

VBR;CBR;ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Image Rotation

0°/180°

Mirror

Yes

Privacy Masking

4 mosaics + 4 color blocks

Fisheye

Installation

Ceiling mount; wall mount; ground mount

Decoding Mode

Front-dewarp;Back-dewarp

Display mode

Front-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R
2P/2R: Supports split screen for 2 windows.
4R: Supports split screen for 4 windows.
*O: Fisheye image view; P: Panoramic image view; R: Region image view.
Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid)

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

PCM; G.711a; G.711Mu; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; tripwire; intrusion; audio detection; intensity change; voltage detection; external alarm; people counting in area; stay detection; people counting; abnormal number of people detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

Storage

FTP; SFTP; Micro SD card (support max. 1TB); NAS

Browser

IE: IE11;
Chrome;
Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC, 1 A; PoE (802.3af)

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 1.4 W (12 VDC), 2.6 W (PoE);
Max.: 8.1 W (12 VDC), 10.1 W (PoE) (ICR switch + IR intensity)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67; IK10

Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Casing Material

Metal + plastic

Product Dimensions

Φ122 mm × 53.3 mm (Φ4.80″ × 2.10″)

Net Weight

0.46 kg (1.01 lb)

Gross Weight

0.75 kg (1.65 lb)

Data Sheet : DH-IPC-EBW5641-AS

Recommended Accessories

อุปกรณ์ที่แนะนำสำหรับการใช้งานร่วมกับสินค้านี้ เพื่อประสิทธิภาพสูงสุดในการติดตั้งระบบกล้องวงจรปิด

เครื่องบันทึก NVR

รองรับการบันทึกภาพจากกล้อง IP Camera มีให้เลือกหลายขนาดช่องสัญญาณ

ดูสินค้าทั้งหมด

Hard Disk สำหรับ CCTV

ออกแบบสำหรับงานบันทึกภาพตลอด 24 ชั่วโมง มีความเสถียรและทนทาน

ดูสินค้าทั้งหมด

PoE Switch

จ่ายไฟและรับส่งข้อมูลผ่านสาย LAN เส้นเดียว ติดตั้งง่าย ประหยัดเวลา

ดูสินค้าทั้งหมด

สาย LAN CAT6

รองรับความเร็วสูง เสถียรภาพในการส่งข้อมูล เหมาะสำหรับระบบกล้อง IP

ดูสินค้าทั้งหมด

อุปกรณ์ติดตั้ง

ขายึดกล้อง, Junction Box และอุปกรณ์ติดตั้งครบชุด สำหรับงานติดตั้งมืออาชีพ

ดูสินค้าทั้งหมด

อุปกรณ์ Network

เราเตอร์, Access Point และอุปกรณ์เครือข่ายอื่นๆ สำหรับระบบของคุณ

ดูสินค้าทั้งหมด

Product Overview

General

Weight	0.75 kg
Dimensions	13 × 13 × 6 cm
Lens	1.68 MM
AI Feature	Heat Map, People Counting, Perimeter Protection, Queue Management
Area	Indoor
Audio	Two-Way Audio
Compression	H.264, H.265, Smart H.264+, Smart H.265+
Night Vision	15m
Power Supply	12VDC & PoE
Protection Rating	IK10, IP67
Resolution	6 MP
Series	WizMind
WDR	120dB WDR
Storage Support	MicroSD 1TB
