Camera

Model

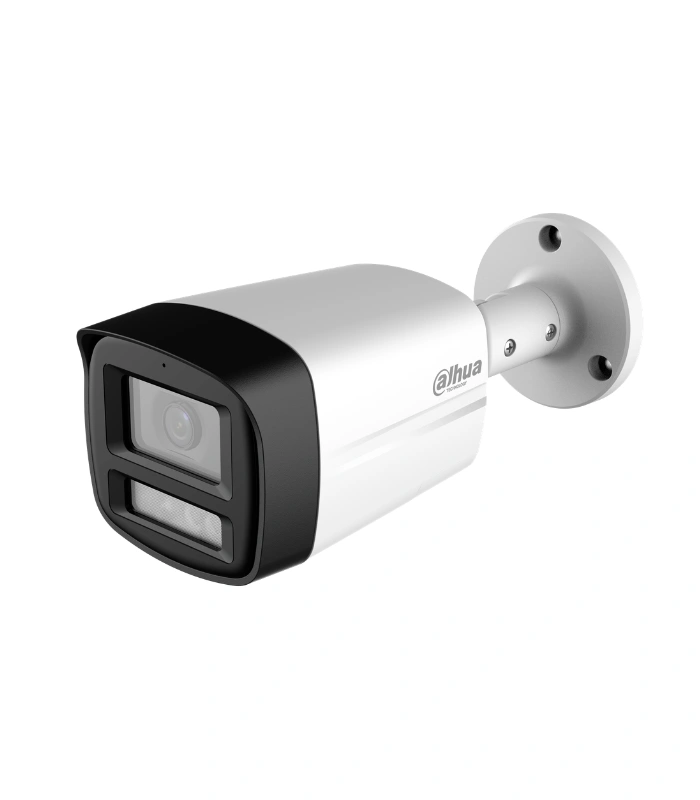

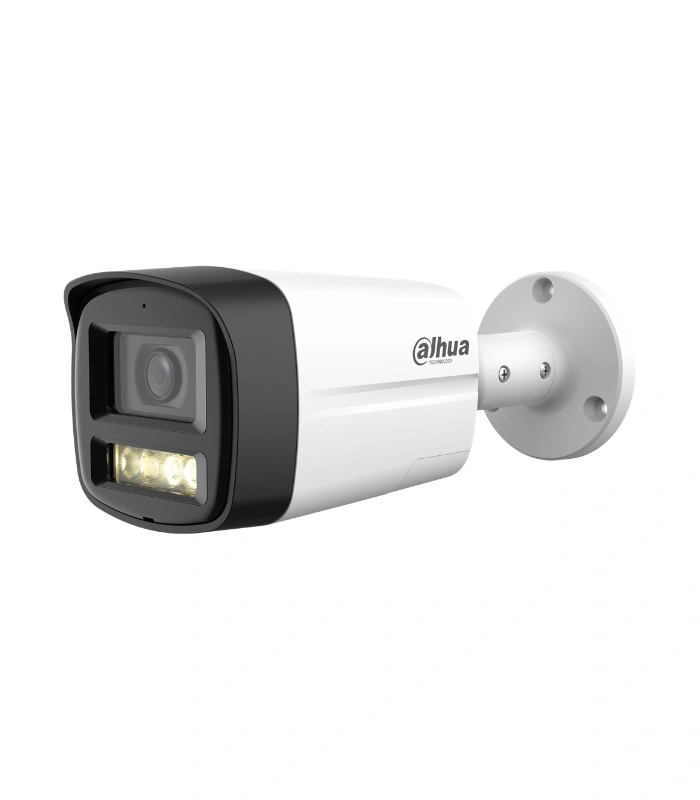

DH-HAC-HFW1500TLM-IL-T

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

4 (Multi-core light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

3.6 mm; 2.8 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 113.3°; V: 62.1°; D: 134.3°
3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); TVI 5M 16:9 (2960 × 1665)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR

WDR

DWDR

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL (CVI, TVI); WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic

Yes

Camera Audio

CVI; TVI

Pick-up Distance

8 m (26.25 ft)

Two-way Talk

Yes (CVI, TVI)

Speaker

Yes

Speaker Distance

8 m (26.25 ft)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply

12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 9.5 W (12 VDC, WLED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Casing Material

Metal front cover + plastic rear barrel + metal bracket

Product Dimensions

198.4 mm × 80.2 mm × 76.2 mm (7.81″ × 3.16″ × 3.00″) (L × W × H)

Net Weight

0.34 kg (0.75 lb)

Gross Weight

0.45 kg (0.99 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
