System

Model

DHI-NVR4216-16P-EI

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

AI

AI by Recorder

Face detection; face recognition; perimeter protection; and SMD

AI by Camera

Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

2 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (8 targets/s)

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

1 channel (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (8 targets/s)

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (8 targets/s)

SMD Plus

SMD Plus by Recorder

4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera

All channels (16 targets/s)

Audio and Video

Access Channel

16 channels

Network Bandwidth

AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing
AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing

Resolution

16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF

Decoding Capability

AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps

Video Output

1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display

1st Screen: 1/4/8/9/16
2nd Screen: 1/4/8/9/16

Third-party Camera Access

Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, ONVIF, Canon

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE9 and later; Firefox

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm

Anomaly Alarm

Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email

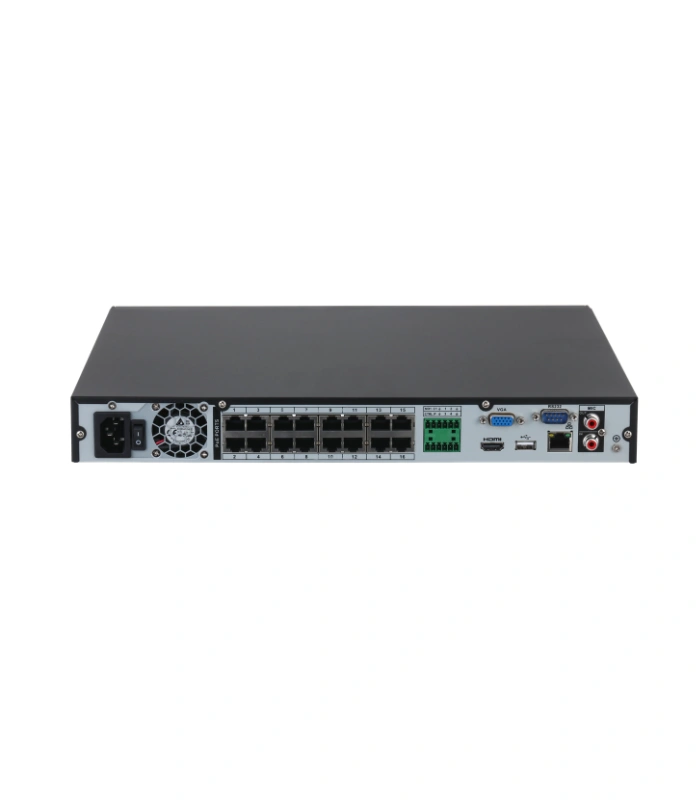

Port

Audio Input

1-channel RCA

Audio Output

1-channel RCA

Alarm Input

4 channels

Alarm Output

2 channels

Disk Interface

2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature.

RS-232

1

USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

PoE Port

16 ports, 10/100 Mbps, IEEE 802.3 af/at

General

Power Supply

100–240 VAC, 47-63 Hz

Power Consumption

Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of asingle port is 25.5W

Net Weight

2.60 kg (5.73 lb)

Gross Weight

3.80 kg (8.38 lb)

Product Dimensions

375.0 mm × 329.3 mm × 53.0 mm (14.76″ × 12.96″ × 2.09″) (W × D × H)

Packaging Dimensions

451.0 mm × 425.0 mm × 147.0 mm (17.75″ × 16.73″ × 5.79″) (W × L × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
