-16%

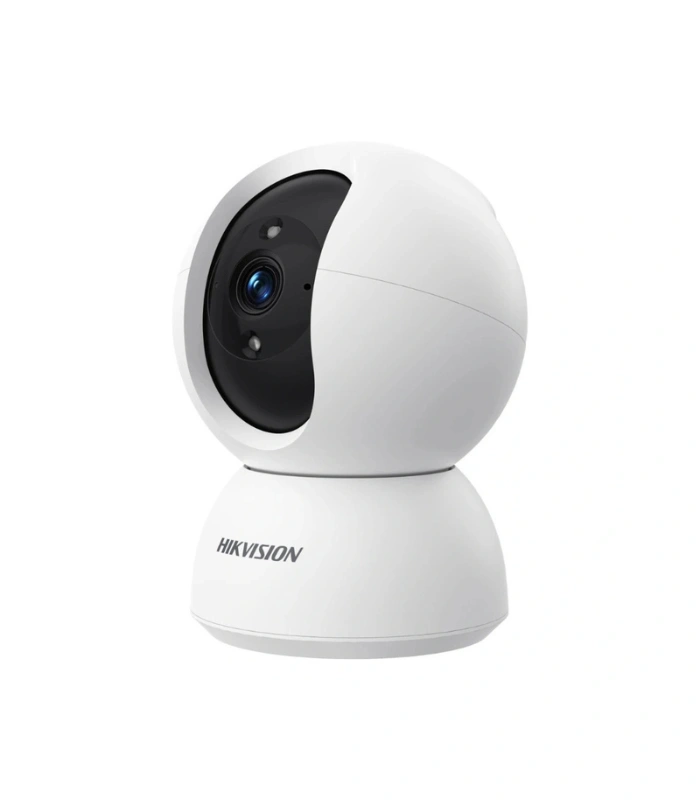

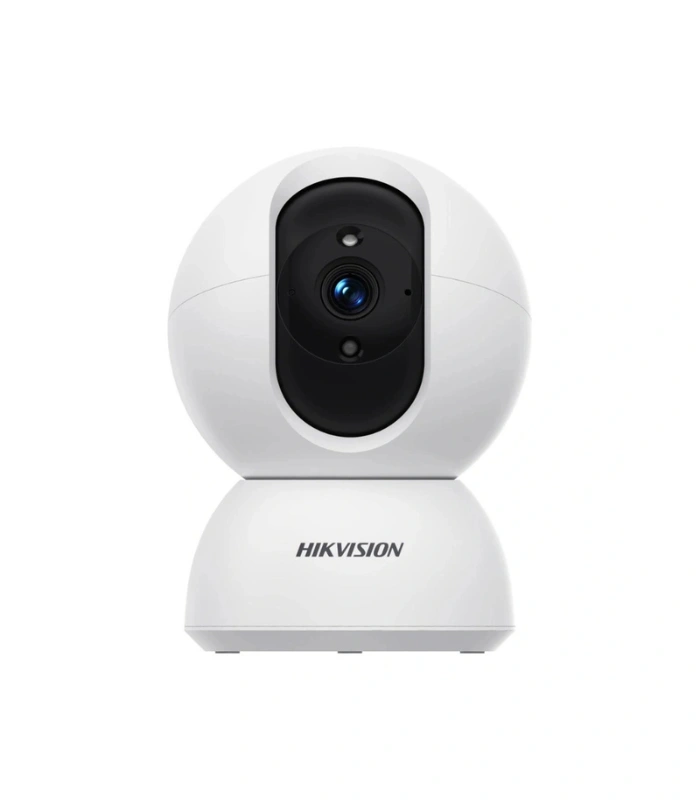

DS-2CV2Q21G1-IDW
2 MP Indoor Fixed PT Network Camera
Brands:
- Support Wi-Fi connection
- Support Motion 2.0, human detection
- Built-in microphone and speaker, support two-way audio
- Mobile monitoring via mobile application
- Support on-board storage, up to 512 GB
- Clear imaging against strong back light due to DWDR technology
- 3D DNR technology delivers clean and sharp images
Original price was: ฿1,190.00.฿995.00Current price is: ฿995.00.
Don't Miss Top Accessories
Camera |
|
| Model | DS-2CV2Q21G1-IDW |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 330°, Tilt: 0° to 60°, Rotate: 0° to 360° |
Lens |
|
| Focal Length & FOV | 4 mm, horizontal FOV 75°, vertical FOV 45°, diagonal FOV 85° |
| Lens Mount | M12 |
| Aperture | F2.0 |
Illuminator |
|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 10 m |
Video |
|
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432) |
| Sub-Stream | 50 Hz: 25 fps (768 × 432, 512 × 288) 60 Hz: 30 fps (768 × 432, 512 × 288) |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264 |
| Video Bit Rate | Up to 1 Mbps |
| Frame Rate | Max. 15 fps Self-Adaptive during network transmission |
Audio |
|
| Audio Compression | G.711 / AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw) / 16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
Network |
|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 4 channels |
| API | ONVIF (Profile S, Profile T, Profile G), SDK |
| User/Host | Administrator |
| Security | Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface |
| Client | iVMS-4200, Hik-Connect, Hik-Partner-Pro |
Wi-Fi |
|
| Encryption Mode | WPA-PSK / WPA2-PSK |
| Frequency Range | 2.412 GHz to 2.472 GHz |
| Channel Bandwidth | 20 MHz |
| Transfer Rate | 11b: up to 54 Mbps 11g: up to 54 Mbps 11n: up to 150 Mbps |
| Wireless Range | Up to 50 m (The performance varies based on actual environment) |
Image |
|
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software |
| Day/Night Switch | Auto |
| Wide Dynamic Range (WDR) | Digital WDR |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface |
|
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Built-in Speaker | Yes, 1 built-in speaker |
| Reset Key | Yes |
Event |
|
| Basic Event | Motion detection (support alarm triggering by specified target type (human)), exception |
| Flashing Light | Red and Blue Light |
General |
|
| Material | Plastic |
| Dimension | Ø80 mm × 122 mm (Ø3.14″ × 4.8″) |
| Package Dimension | 105 mm × 105 mm × 190 mm (4.1″ × 4.1″ × 7.5″) |
| Weight | Approx. 216 g (0.48 lb.) |
| Package Weight | Approx. 554 g (1.22 lb.) |
| Storage Conditions | -10 °C to 45 °C (14 °F to 113 °F), Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -10 °C to 45 °C (14 °F to 113 °F), Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, Mirror |
| Power | 5 VDC ±10%, 1 A, Max. 5 W |
Approval |
|
| RF | CE-RED (EN 301489-1 V2.1.1; EN 301489-17 V3.1.1; EN 300328 V2.1.1; EN 62311:2008) |
| EMC | CE-EMC (EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014) |
| Safety | CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU |
Recommended Accessories
อุปกรณ์ที่แนะนำสำหรับการใช้งานร่วมกับสินค้านี้ เพื่อประสิทธิภาพสูงสุดในการติดตั้งระบบกล้องวงจรปิด
MicroSD Card
เพิ่มพื้นที่จัดเก็บภาพและวิดีโอภายในกล้อง รองรับการบันทึกแบบต่อเนื่องตลอด 24 ชั่วโมง
Access Point
เพิ่มพื้นที่ครอบคลุมสัญญาณ WiFi ในบริเวณที่สัญญาณอ่อนหรือมีสิ่งกีดขวาง ช่วยให้กล้องเชื่อมต่อเครือข่ายได้อย่างเสถียร ลดปัญหาภาพกระตุกหรือการเชื่อมต่อหลุดระหว่างการใช้งาน
Mounting Accessories
อุปกรณ์ติดตั้งและขายึดสำหรับกล้องวงจรปิด ช่วยให้สามารถติดตั้งในตำแหน่งที่เหมาะสมได้อย่างมั่นคง สวยงาม และปลอดภัยต่อการใช้งานระยะยาว
Product Overview
General
| Weight | 0.554 kg |
|---|---|
| Dimensions | 10.5 × 10.5 × 19 cm |
| AI Feature | Human Detection, Motion Detection |
| Area | Indoor |
| Audio | Two-Way Audio |
| Lighting Technology | IR |
| Lens | 4 MM |
| Resolution | 2 MP |
| Series | Cable-Free Series |
| WDR | DWDR |
| Support | Wi-Fi connect |
| Storage Support | MicroSD 512GB |
