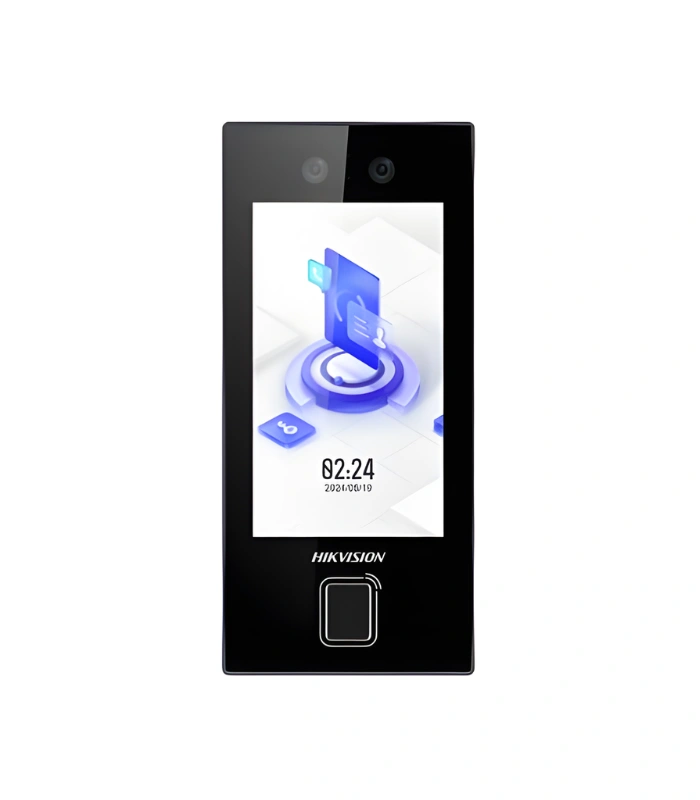

DS-K1T344MBFWX-E1
Hikvision Value Series Face Access Terminal
Brands:
- Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module
- Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
- Supports face, card, PIN, and fingerprint authentication
- Two-way audio with client software, indoor station, and main station.
- Supports mobile web and PC web for configuration
- Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
ติดต่อ/สอบถาม
Don't Miss Top Accessories
Model |
|
|---|---|
| Model | DS-K1T344MBFWX-E1 |
System |
|
| Operating system | Linux |
Display |
|
| Screen size | 4.5-inch |
| Resolution | 480 × 854 |
| Type | LCD |
| Operation method | Touchable |
Video |
|
| Lens | × 2 |
| Video standard | PAL (Default) and NTSC |
Network |
|
| Bluetooth | Support |
| Wired network | 10/100 Mbps self adaptive |
| Wi-Fi | Support |
Interface |
|
| Alarm input | 2 |
| Alarm output | 1 |
| PoE | IEEE802.3at, standard PoE |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1, supports Wiegand input, single direction |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| USB | 1 |
Capacity |
|
| User capacity | 3000 |
| Card capacity | 3000 |
| Face capacity | 3000 |
| Fingerprint capacity | 3000 |
| Event capacity | 150000 |
Authentication |
|
| Card type | M1 card |
| Card reading frequency | 13.56 MHz |
| Face recognition duration | ＜ 0.2 s |
| Face recognition accuracy rate | ＞99% |
| Face recognition distance | 0.3 to 1.5 m |
General |
|
| Button | No physical call button |
| Power supply | 12 VDC, 1 A, standard PoE |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10 to 90% (No condensing) |
| Dimensions | 165.2 mm × 75.7 mm × 25 mm (6.5″ × 2.98″ × 0.98″) |
| Installation | Wall mounting |
| Protective level | IP65 |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese, Kazakh, Uzbek |
| Weight | Gross weight: 0.60 kg (1.33 lbs)
Net weight: 0.30 kg (0.66 lbs) |
Function |
|
| QR code recognition | Support scan QR code via camera |
| Face anti-spoofing | Support |
| Two-way audio | Support |
| Audio prompt | Support |
| Time synchronization | Support |
Product Overview
General
| Weight | 0.6 kg |
|---|---|
| Dimensions | 16.52 × 7.57 × 2.5 cm |
| Product Type | Face & Fingerprint, Face Recognition, Fingerprint, Reader Standalone |
