F18
- TFT Color Screen
- Audio-visual indication for acceptance and rejection of valid/invalid fingerprints
- More simple and convenient operation
- Slim and Elegant Design
- Streamlined and slim design for narrow spaces
- New Platform
- ZMM210 hardware with 1.2GHz CPU further speeds up processing time
- Easy Installation and Connectivity
- Wiegand input & output
- Network interface by TCP/IP
- Full Access Control Features
- Webserver
- Anti-passback
- Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
- New Firmware
- Adopts new firmware which optimizes various functions and supports flexible user privilege setting for multi-level management
- Standard AC Push
- Optional TA push
ติดต่อ/สอบถาม
Don't Miss Top Accessories

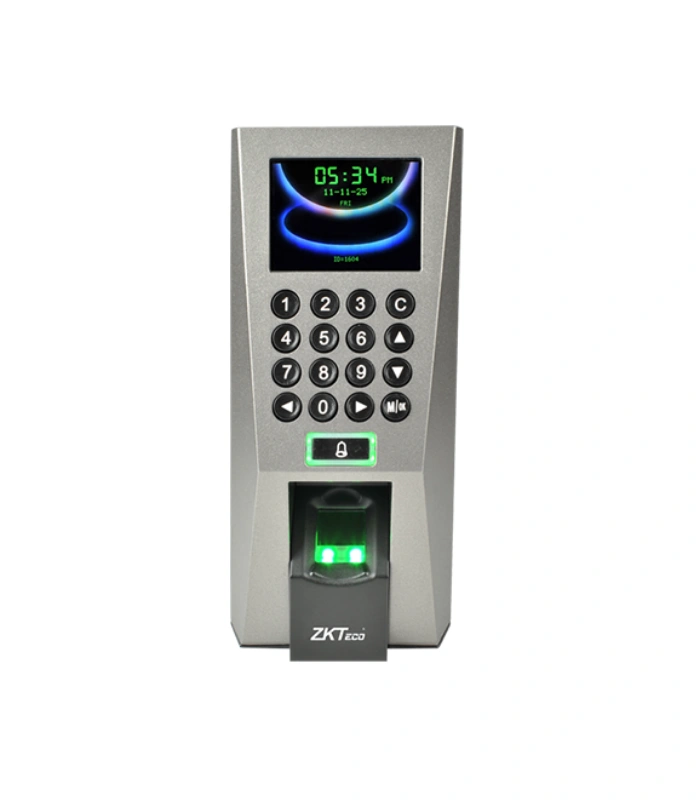

F18 – ZKTeco
is an innovative biometric fingerprint reader for access control application.With high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multilevel management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and firmware, the new f18 is able to verify fingerprints with even higher efficiency. The device offers flexibility of both standalone installation with any thirdparty access control panels which support standard Wiegand signal. TCP/IP is also available which enable F18 to be applied in different network.
F18 standard with AC push firmware connect to ZKBio CVAccess, optional standalone firmware, and also optional TA push firmware connect to ZKBio Time.
Model |
F18 |
|---|---|
Display |
2.4-inch TFT LCD Color Screen |
Fingerprint Capacity |
3,000 |
Card Capacity |
5,000 (Optional) ID/IC/HID Prox/HID iclass card |
Transaction Capacity |
100,000 |
Sensor |
ZK Optical Sensor |
Algorithm Version |
ZK Finger V10.0 |
Communication |
RS232/485*, TCP/IP, USB-host |
Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
Wiegand Signal |
Input, Output, SRB |
Functions |
DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional) |
Power Supply |
12V DC, 3A |
Operating Temperature |
0 °C – 45 °C |
Operating Humidity |
20% – 80% |
Dimension (WxDxH) |
80 × 183 × 42 mm |
SDK and Software |
AC push, ZKBio CVAccess / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5 |
